    SONY






Product Name:

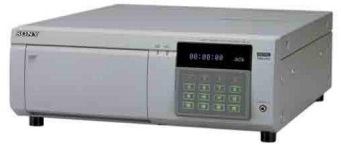

Digital Surveillance Recorder
Model No: HSR-2P



Hybrid Digital Recorders for High Performance Digital Video Recording & Archiving

In 1999, Sony introduced the HSR-1P digital hybrid recorder, a new type of surveillance recorder that overcomes the limitations of both analog and digital recorders. The HSR recorder provides better picture quality, longer recording, and greater reliability than analog recorders. It also eliminates some of the common problems with digital recorders such as long upload times.

Sony now further strengthens its position in the surveillance recorder market by introducing the improved HSR-1P and the new HSR-2P recorders. The HSR-2P offers two exciting new features: increased recording capacity on a much larger hard disk drive and the ability to playback-during-recording.

New Features of the HSR-2P

HSR-2P
Playback-during-recording Yes
Network capability with SNT-V304* Yes
Larger HDD capacity More than 20GB

* Version 2.00 or higher required

The HSR advantage: HDD/DV Hybrid recording
The HSR recorders use both a hard disk drive (HDD) and a DV (digital video) tape drive for storage. Images are first stored on the hard disk and then, at given intervals, are automatically transferred to DV tape. Unique DV tape technology adds the advantages of high-density recording, large storage capacity and superb picture quality-in other words innovative video performance. The hybrid approach of this system dramatically reduces the burden on the tape drive and minimizes maintenance.

Why the hybrid recording system is superior to conventional digital recorders?
To many, digital recording means recording directly to a hard disk. But that is not the whole story: even digital systems can compromise picture quality because of storage-capacity limitations. Both for archiving purposes and to make space for new recordings, data on the hard disk must be transferred to another medium such as DAT. With the HSR's hybrid recording capabilities there are no compromises: the large storage capacity provides high picture quality, and archiving from the HDD to DV tape is done automatically while the unit continues to record.



FEATURES :
Playback-during-recording (HSR-2P only) 20 GB HDD (HSR-2P only)
Network Capability with the Optional SNT-V304 Four Alternative Quality Modes
More Shots Recorded High Reliability and Less Maintenance

Large Storage Capacity
Long Recording Time
High Refresh Rate

Reduced Use of Tape Mechanism
Multiple Protection

Less Space Required Quick Recording Start

Compact Body
Compact Storage Medium

Event Recording
Power On Recording

System Versatility Flexibility in Alarm Mode

16 Camera Inputs
Built-in Multiplexing Capability
Output for a Second Monitor
Flexible Camera Assignment
RS-232C Interface
37-pin Parallel Port

Normal Mode
Pre-Alarm Mode
Interleave Mode
Event Mode
Frame Mode

Continuous Recording Function Sophisticated Security Functions
Water Mark Intelligent Search Functions
REC End Search Frame Recording in Hyper Mode
