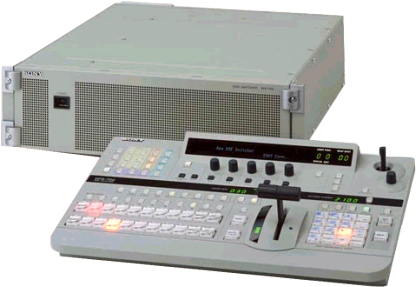

Product Name: D.Multi Effects + V.Switcher
Model No: DFS-700P
DME SWITCHER
Features:
Digital Signal Processing - High quality full digital component processing from input to output at 4:2:2:4 (Video, Key — Chroma / Down Stream). Wide Input Range - Supports 4 SDI and 4 analogue component inputs as standard. (Up to 16 inputs with options. 8 assignable to control panel) Digital and Analogue Out - A complete range of outputs including 2 SDI, 2 analogue component, 2 analogue composite and 2 Y/C. Versatile Switcher - Integrated switcher functions include chroma keyer, colour corrector, frame memory, fade-to-black and down stream keyer.
Cost-effective Upgrade - No need for external A/D converters. Simply drops into place of existing analogue switcher. Upgrade to digital at own pace. Fast, Real Time Effects - Delivers true 3D, page turns and effects easily and instantly. Over 700 pre-programmed effects with optional boards. No Tedious Programming - Pre-programmed effect patterns take the pain out of creating complex moves and effects, with the ability partially modify. Spectacular Effects - Draws on Sony's expertise in high-end NL image processing. Includes Fanta Trail , Ripple and Swirl effects. Powerful Options - Add an optional second channel video board or 3D mapping board for easy access to 3D effects such as cubes and explosion.
User Friendly Panel - Ergonomically designed control panel is streamlined for maximum efficiency. Ideal for EFP and remote live switching. Live Switching - Fitted with Preview and Tally outputs as well as broadcast style cross-point buttons for extra durability in live switching operation Editor Friendly - Provides a comprehensive interface with Sony's editing controllers including the BVE-2000 and PVE-500. Multiple Uses - Powerful and versatile the DFS-700P is perfect for newsrooms, small post suites, field editing, small studios and OB units.
Supplied Accessories:
25-pin Control Cable (10m)
AC power cord
Operating instructions
Specifications:
General Power Requirements: AC220 - 240V, 50/60Hz Power Consumption: 200W
Input Signals
- Video Inputs: SDI - BNC x4 (270 Mb/s)
- Video Inputs: Component (Y/R-Y/B-Y) - BNC x 4
- DSK Video In: BNC x 2
- Ref Video: BNC x 2
Output Signals
- PGM Out: SDI - BNC x 2) (270 Mb/s)
- PGM Out: Component - BNC x 2 (Y/R-Y/B-Y)
- PGM Out: Composite - BNC x 2
- PGM Out: S-Video - DIN x 2 (Y/C)
- Clean Out: BNC x 1 (SDI)
- Preview Out: BNC x 1 (Composite)
- Black Burst Out: BNC x 3
Signal Processing
- Sampling Rate: Y: 13.5 MHz; R-Y/B-Y: 6.75 MHz
- Quantization: Y/R-Y/B-Y: 8-bits
- Frequency Response: 0-5 MHz +0.5dB/-1dB
- Signal to Noise Ratio: More than 50dB (Composite)
- Signal to Noise Ratio: More than 55dB (Component, Y/C)
- Y/C Delay: Less than 20ns (Component)
- Y/C Delay: Less than 50ns (Composite, Y/C)
Control Signals
- Editor: D-sub 9-pin x 1, RS-422A
- GPI/T: BNC x 2, TTL level
- Control Panel: D-sub 25-pin
- Tally: D-sub 25-pin x 1, Relay contact outputs x 8
Weight: Control Panel - 3kg
Weight: Processor - 14kg
Dimensions: Control Panel - 440(w) x 121h) x 287(d)mm
Dimensions: Processor - 440(w) x 132(h) x 520(d)mm
